Buyers Guide: Selecting Industrial MIG Wire Feeders

Why Feeder Selection Drives Production Quality

The wire feeder is the mechanical heart of any MIG or MAG welding operation. It feeds wire into the arc at a consistent rate, and any variation in that rate changes the heat input, weld bead profile, and spatter behavior. For heavy production lines, a feeder that drifts by even a small percentage can create inconsistent welds, increase post-weld inspection failures, and force operators to rework joints.

When selecting industrial MIG wire feeders, focus on the mechanical interface between the wire and the drive system. The feeder must handle the specific wire diameter, material, and coating without damaging the wire surface. A scratched or kinked wire can jam the drive rollers, break in the liner, or cause excessive spatter at the contact tip. The feeder also must maintain precise tension and speed control across long production runs, often for many hours without interruption.

This guide outlines a practical framework for evaluating feeder components. It covers drive systems, tension and speed control, mechanical durability, and maintenance planning. The goal is to help buyers identify the right feeder for their production environment without relying on marketing claims.

Evaluating Drive Systems for Wire Material

The drive system is the first critical component. It determines how the wire is pulled through the liner and into the welding gun. The main options are friction drive, encoder drive, and servo drive systems, each with distinct characteristics for industrial use.

Friction drive feeders use rubber or metal rollers to grip the wire and pull it forward. They are simple, inexpensive, and easy to maintain. However, they rely on surface contact, so they can slip if the wire is coated with oil, if the rollers wear, or if the wire diameter is outside the optimal range. For production lines using standard mild steel ER70S-6 wire, a well-maintained friction drive feeder can perform reliably for many years. But when the wire material changes, or when the production volume increases, friction drive systems may require more frequent roller replacement and tension adjustment.

Encoder drive feeders use a motor with an integrated encoder to measure the actual wire movement. The encoder provides feedback to the controller, allowing precise speed control and compensation for variations in wire tension. This makes encoder drive feeders more suitable for production environments where consistency is critical, such as automotive, aerospace, or heavy fabrication. They handle a wider range of wire materials and diameters better than friction drive systems, and they reduce the risk of wire breakage during long runs.

Servo drive feeders take control further by using a servo motor and encoder to adjust speed in real time. They can compensate for changes in wire tension, contact tip wear, and liner friction without operator intervention. Servo drive systems are common in high-volume production and robotic welding cells. They are more expensive to purchase and require more sophisticated maintenance, but they deliver the highest level of consistency and adaptability.

Criterion	What to look for	Why it matters
Drive type	Match friction, encoder, or servo drive to wire material and production volume	Prevents wire slippage, breakage, and speed variation during long runs
Encoder resolution	High-resolution encoders for encoder or servo drive systems	Ensures precise wire speed control and reduces weld inconsistency
Roller material	Select rollers compatible with wire coating and diameter	Prevents wire surface damage and reduces jam frequency
Tension control	Adjustable tension with fine calibration	Maintains consistent wire feed speed and reduces spatter
Speed range	Feeder speed range must cover the amperage range of the welding power source	Avoids underfeeding or overfeeding at high or low amperages

For heavy-duty production, encoder or servo drive feeders are often the better choice. They handle the higher wire feed speeds and longer run times without drift. If the production environment uses multiple wire materials, such as mild steel, stainless steel, and aluminum, a servo drive feeder with adjustable parameters is more flexible than a fixed friction drive system.

Tension Control and Wire Speed Consistency

Wire speed consistency is the core function of the feeder. The wire must enter the contact tip at a rate that matches the amperage setting of the welding power source. If the wire feeds too fast, the arc length increases, spatter increases, and the weld bead becomes uneven. If the wire feeds too slow, the arc length decreases, the wire can burn up in the liner, and the weld may lack penetration.

Industrial MIG wire feeders must maintain speed accuracy over long production cycles. This requires stable tension control and a reliable feedback loop. Friction drive feeders use mechanical tension springs or rollers to apply pressure to the wire. The operator must adjust the tension by feel and visual inspection. Encoder and servo drive feeders use electronic tension control, where the controller adjusts motor torque based on encoder feedback. This electronic control is more stable and less dependent on operator skill.

When evaluating tension control, test the feeder with the actual wire material and diameter that will be used in production. Run the feeder at the minimum and maximum amperage settings of the welding power source. Check for wire speed variation over a period of several hours. A feeder that drifts by more than a few percent over a long run will cause weld inconsistency and may require constant operator adjustment.

Also consider the liner and contact tip interface. The wire must slide smoothly through the liner without binding. A worn or incorrectly sized liner can increase friction, causing speed variation and wire breakage. The contact tip must be the correct size for the wire diameter and must be seated properly in the nozzle. These components are consumables, but their condition directly affects feeder performance.

Mechanical Durability and Build Quality

Production feeders operate in harsh environments. They are exposed to metal dust, spatter, oil, and vibration. The mechanical build of the feeder must withstand these conditions without degradation. Look for feeders with sturdy housings, sealed bearings, and durable drive components.

The drive roller housing is a key wear point. In friction drive systems, the rollers and rollers housing take direct contact with the wire. If the housing is poorly aligned or the rollers wear unevenly, the wire can kink or break. In encoder and servo systems, the drive rollers still contact the wire, but the mechanical load is distributed more evenly. Check the roller material and the housing alignment. The rollers should be parallel and the wire should sit in the center of the roller gap.

The motor and gearbox are also critical. A high-duty motor can handle long production runs without overheating. A gearbox with sealed bearings and a durable housing reduces maintenance frequency. For heavy production, look for feeders with continuous duty ratings and cooling features.

The feeder should also have easy access for maintenance. The liner, rollers, and tension components should be replaceable without disassembling the entire unit. Quick-release liners and accessible tension adjustment knobs reduce downtime. If the feeder requires a wrench and multiple bolts to replace a liner, maintenance time increases and the risk of misalignment increases.

Maintenance Planning and Spare Parts

Maintenance planning is a major factor in total cost of ownership. A feeder that requires frequent roller replacement, liner changes, and tension adjustments will cost more in labor and downtime than a feeder that runs for long periods with minimal intervention.

Before purchasing, identify the maintenance intervals for the specific feeder and wire material. For friction drive feeders, roller replacement may be needed every few thousand hours, depending on wire type and production volume. Encoder and servo feeders may require less frequent roller replacement, but the encoder and servo controller require periodic calibration and cleaning.

Plan for spare parts. Keep a stock of rollers, liners, contact tips, nozzles, and tension springs. If the feeder uses proprietary components, ensure they are available from the manufacturer or an approved supplier. Delays in spare parts can stop a production line, especially in high-volume environments where uptime is critical.

Also consider the skill level of the maintenance staff. Some feeders require specialized tools or software to calibrate the encoder or servo controller. If the maintenance team lacks this training, consider feeders with simpler calibration procedures or vendors that offer training.

Integration with Welding Power Source and Production Line

The feeder must integrate smoothly with the welding power source and the production line. The wire feed speed must match the amperage range of the power source. Check the amperage and voltage ranges of both the feeder and the power source. If the feeder cannot maintain the required wire speed at the maximum amperage, the weld quality will suffer.

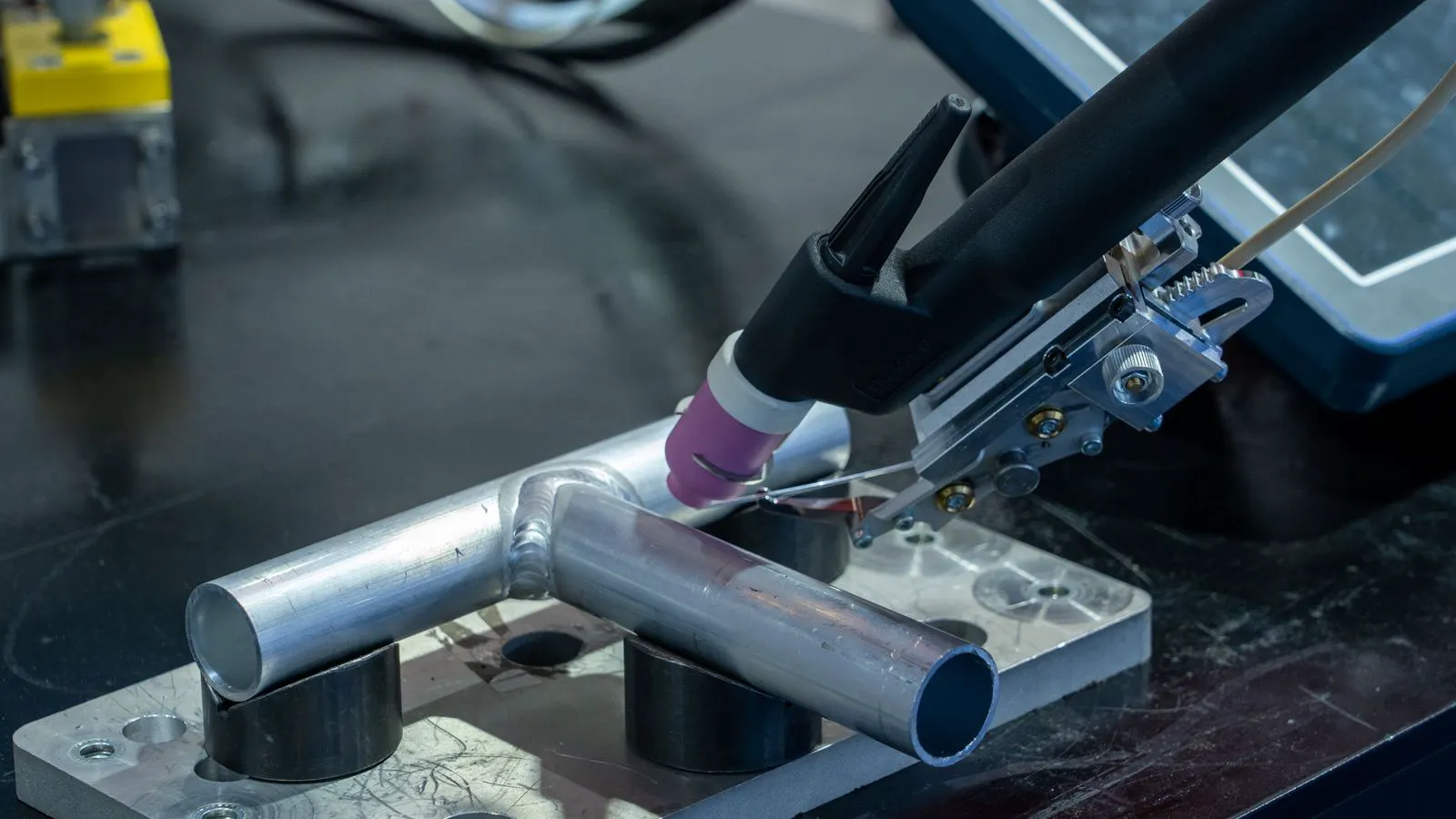

In robotic welding cells, the feeder must integrate with the robot controller. The feeder speed must be synchronized with the robot motion to maintain a consistent arc length. Some feeders offer communication interfaces, such as serial or Ethernet, to allow the robot controller to adjust the wire speed in real time. If the production line uses multiple welding stations, ensure the feeder can be configured for each station or that it can be networked for centralized control.

Also consider the physical layout. The feeder must fit in the available space and be accessible to operators. The wire spool must be accessible for loading and unloading. The wire path from the spool to the feeder should be straight and free of sharp bends. Bends can cause wire friction and breakage, especially at high feed speeds.

For production lines that use multiple wire materials, consider feeders with multiple spool stations or quick-change wire heads. This reduces changeover time when switching from mild steel to stainless steel or from solid wire to flux-cored wire. Quick-change feeders can save significant time in multi-product environments.

Common Pitfalls in Feeder Selection

Buyers often make mistakes that lead to poor feeder performance. One common mistake is selecting a feeder based only on price. A low-cost feeder may save money upfront but incur high maintenance costs and downtime. Evaluate the total cost of ownership, including consumables, maintenance labor, and production impact.

Another mistake is ignoring wire material compatibility. A feeder that works well with mild steel wire may struggle with stainless steel or aluminum wire. Stainless steel wire is harder and more abrasive, requiring stronger rollers and a tighter tension control. Aluminum wire is softer and more prone to kinking, requiring a larger contact tip and a smoother liner path. Always test the feeder with the actual wire material before committing to production.

A third mistake is underestimating the importance of tension control. If the feeder tension is too loose, the wire can slip in the rollers and cause speed variation. If the tension is too tight, the wire can be deformed or broken. Proper tension adjustment is critical for consistent welds.

Finally, do not overlook the importance of spare parts and support. A feeder with good performance but no parts availability will stop production when a component fails. Check the parts availability and support reputation before purchasing.

Final Decision Checklist

Use the following checklist to evaluate potential industrial MIG wire feeders for production use.

1. Wire material and diameter compatibility: Does the feeder handle the specific wire material and diameter used in production?
2. Drive system match: Is the drive system appropriate for the production volume and wire material?
3. Encoder resolution and speed accuracy: Does the feeder maintain consistent wire speed over long runs?
4. Tension control: Is the tension adjustable and stable across the amperage range?
5. Mechanical durability: Are the housings, bearings, and motors built for continuous production use?
6. Maintenance access: Are rollers, liners, and tension components easy to replace?
7. Spare parts availability: Are spare parts and consumables available from the supplier?
8. Integration with power source and production line: Does the feeder integrate with the welding power source and robot controller?
9. Physical fit: Does the feeder fit in the available space and allow easy wire loading?
10. Total cost of ownership: Are the maintenance costs, downtime risks, and consumable costs acceptable?

Answer each question with a specific observation from the feeder documentation or a test run. If any answer is unclear or negative, do not proceed with that feeder until the issue is resolved. A feeder that fails on any critical criterion will cause production problems, regardless of its price or brand.

Conclusion

Selecting industrial MIG wire feeders requires a structured evaluation of drive systems, tension control, mechanical durability, and maintenance planning. The right feeder matches the wire material, production volume, and integration requirements of the welding operation. By testing the feeder with the actual wire and running it through a full production cycle, buyers can identify performance issues before committing to a purchase. The goal is not to find the cheapest feeder, but the feeder that will deliver consistent welds and minimal downtime over its service life.
